New user from Manchester UK

More
7 years 2 weeks ago - 7 years 2 weeks ago #2880 by G4LVI
Hi,

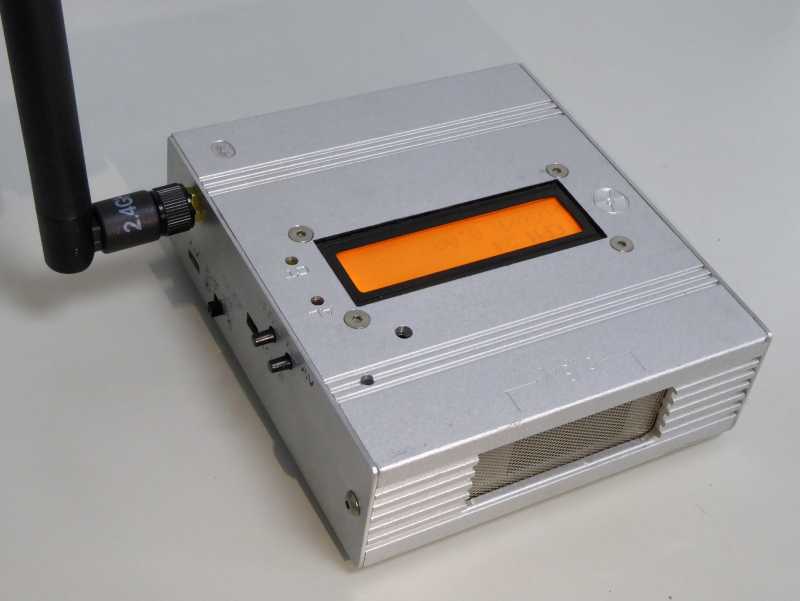

I am in Manchester UK and have just built an Arduino IDE Geiger Counter based on a kit I bought as ebay item 152426754731 from user impexeris.

The detector tube is an SBT-11A (alpha, beta, gamma), biased at 430V, with the mica window exposed but behind a 0.3mm thick 50% transmission stainless steel mesh.

The detector is usually indoors at home, or at work about 3 miles away. Home cellar reading is 2.4 counts per minute higher than on the upper floors, work reading is consistently 8cpm below home non-cellar reading.

Data is logged via an HC-05 Bluetooth module to either Radiation Logger on PC or plotted on Android using the Visual Logger app,

Andrew.
Attachments:
Last edit: 7 years 2 weeks ago by G4LVI. Reason: url not showing
The following user(s) said Thank You: Gamma-Man

Please Log in or Create an account to join the conversation.

More
7 years 2 weeks ago #2883 by Gamma-Man

Hi,

I am in Manchester UK and have just built an Arduino IDE Geiger Counter based on a kit I bought as ebay item 152426754731 from user impexeris.

The detector tube is an SBT-11A (alpha, beta, gamma), biased at 430V, with the mica window exposed but behind a 0.3mm thick 50% transmission stainless steel mesh.

The detector is usually indoors at home, or at work about 3 miles away. Home cellar reading is 2.4 counts per minute higher than on the upper floors, work reading is consistently 8cpm below home non-cellar reading.

Data is logged via an HC-05 Bluetooth module to either Radiation Logger on PC or plotted on Android using the Visual Logger app,

Andrew.


Nice built. /Carl

Please Log in or Create an account to join the conversation.

More
7 years 2 weeks ago - 7 years 2 weeks ago #2889 by mw0uzo
Replied by mw0uzo on topic New user from Manchester UK
Welcome Andrew!
It's all set up for you.
That's a really nice build you've done there! :cheer:
Last edit: 7 years 2 weeks ago by mw0uzo.

Please Log in or Create an account to join the conversation.

More
7 years 2 weeks ago #2893 by G4LVI
Replied by G4LVI on topic New user from Manchester UK
Thanks for setting up the account. Once I get bored with the usual pitchblende, smoke detector Am source, low sodium salt experiments with paper, aluminium and lead shielding I will leave the counter logging to the site long term, hopefully outside.

Please Log in or Create an account to join the conversation.
