GQ GMC units
10 years 1 week ago #7
by Frank
GQ GMC units was created by Frank
I have several GQ GMC units, most were kits except for the GMC-280 one which has a lcd display. The others were partial kits and have been running great since day one. Current outside one is a GMC-200 with a M4011 tube. Been out there for some time now and have had no issues so far. I have it mounted in one of them radiation shields used for temperature/humidity sensors. Using an audio extension cable and extended the power supply line. The using a audio Y cable to split the signal and feed 2 programs at the same time. Feeding RadMon and NETC.
Please Log in or Create an account to join the conversation.
8 years 2 months ago - 8 years 2 months ago #2435
by Frank
Replied by Frank on topic GQ GMC units
Had some images of my outdoor on the other site we first created for us, but since we ended up here on this great site, I'll add the image here as well.

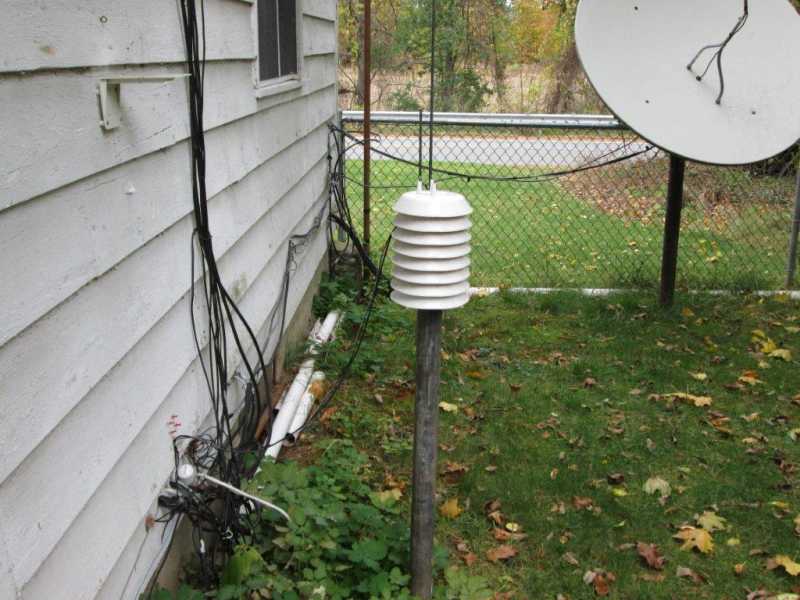

I have one of my GMC-200 units inside the enclosure, power and audio lines lengthen to pass thru the wall to my shack located in the basement. The audio line goes into a Y splitter then to 2 USB adapters sending data to 2 different sites.
I have one of my GMC-200 units inside the enclosure, power and audio lines lengthen to pass thru the wall to my shack located in the basement. The audio line goes into a Y splitter then to 2 USB adapters sending data to 2 different sites.
Last edit: 8 years 2 months ago by Frank.
The following user(s) said Thank You: OldMule
Please Log in or Create an account to join the conversation.
8 years 2 months ago #2445
by OldMule
Replied by OldMule on topic GQ GMC units
Nifty setup! Thanks for posting the pic!
