Please Identify this Russian Tube
- Sonarflash
- Topic Author
- Offline
- Premium Member
- Blind since 1966 - 51+ years with insight.
Less
More
- Posts: 136
- Thank you received: 15
9 years 2 weeks ago #1633
by Sonarflash
Please Identify this Russian Tube was created by Sonarflash

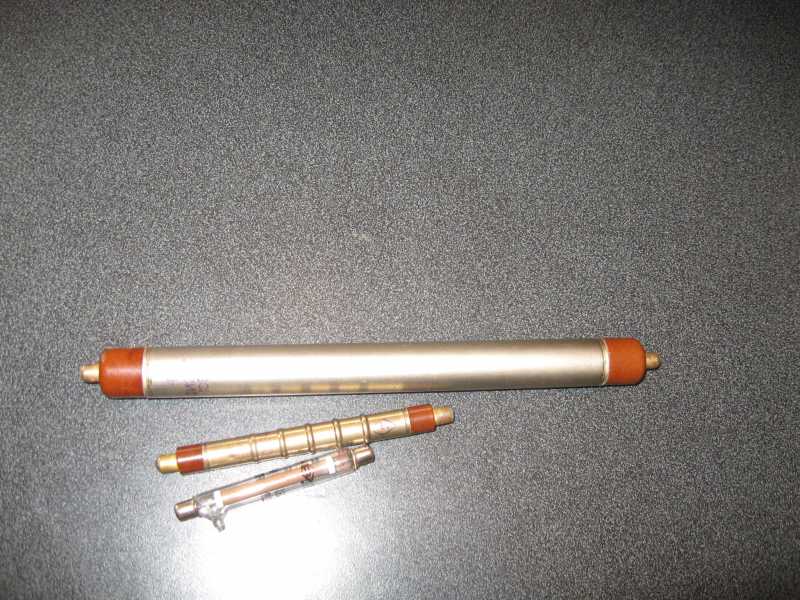

Here are three GM tubes. Small glass tube on bottom with nipple is (I believe) CI-22BG.
Middle tube is standard SBM-20.
Sovtube sent me the large top tube as a CI-22BG, but it isn't.
Anybody know for sure what it is?
According to a few sighted friends, it has the same C reverse N 22 designation as the small tube.
Middle tube is standard SBM-20.
Sovtube sent me the large top tube as a CI-22BG, but it isn't.
Anybody know for sure what it is?
According to a few sighted friends, it has the same C reverse N 22 designation as the small tube.
Please Log in or Create an account to join the conversation.
9 years 2 weeks ago - 9 years 2 weeks ago #1634
by Juzzie
Owner and operator of "southofhobart" monitoring stations.
Replied by Juzzie on topic Please Identify this Russian Tube
looks like an SBM-19/STS-6...
Owner and operator of "southofhobart" monitoring stations.
Last edit: 9 years 2 weeks ago by Juzzie.
Please Log in or Create an account to join the conversation.
- Sonarflash
- Topic Author
- Offline
- Premium Member
- Blind since 1966 - 51+ years with insight.
Less
More
- Posts: 136
- Thank you received: 15
9 years 2 weeks ago #1636
by Sonarflash
Replied by Sonarflash on topic Please Identify this Russian Tube
Thanks for the look and answer.
Just found out that the tube is 220mm long and 19mm diameter. That helped. It actually does have a Sirylic "SI-22" designation, which is why it got shipped in place of a SI-22BG. It's actually a "CI-22G" or SI-22G.
Same operating voltage, 9 to 13 megohm anode resistor, and almost three times longer than the tiny CI-22BG tubes. Too bad Sovtube didn't make the same shipping error the second time when I ordered two CI-22BG tubes. Sigh.
Just found out that the tube is 220mm long and 19mm diameter. That helped. It actually does have a Sirylic "SI-22" designation, which is why it got shipped in place of a SI-22BG. It's actually a "CI-22G" or SI-22G.
Same operating voltage, 9 to 13 megohm anode resistor, and almost three times longer than the tiny CI-22BG tubes. Too bad Sovtube didn't make the same shipping error the second time when I ordered two CI-22BG tubes. Sigh.
