Gamma Spectroscopy
Radium gamma spectrum
- ChrisLX200
-
Topic Author
- Offline
- Premium Member
-
Less
More
- Posts: 142
- Thank you received: 8
13 hours 38 minutes ago #7346
by ChrisLX200

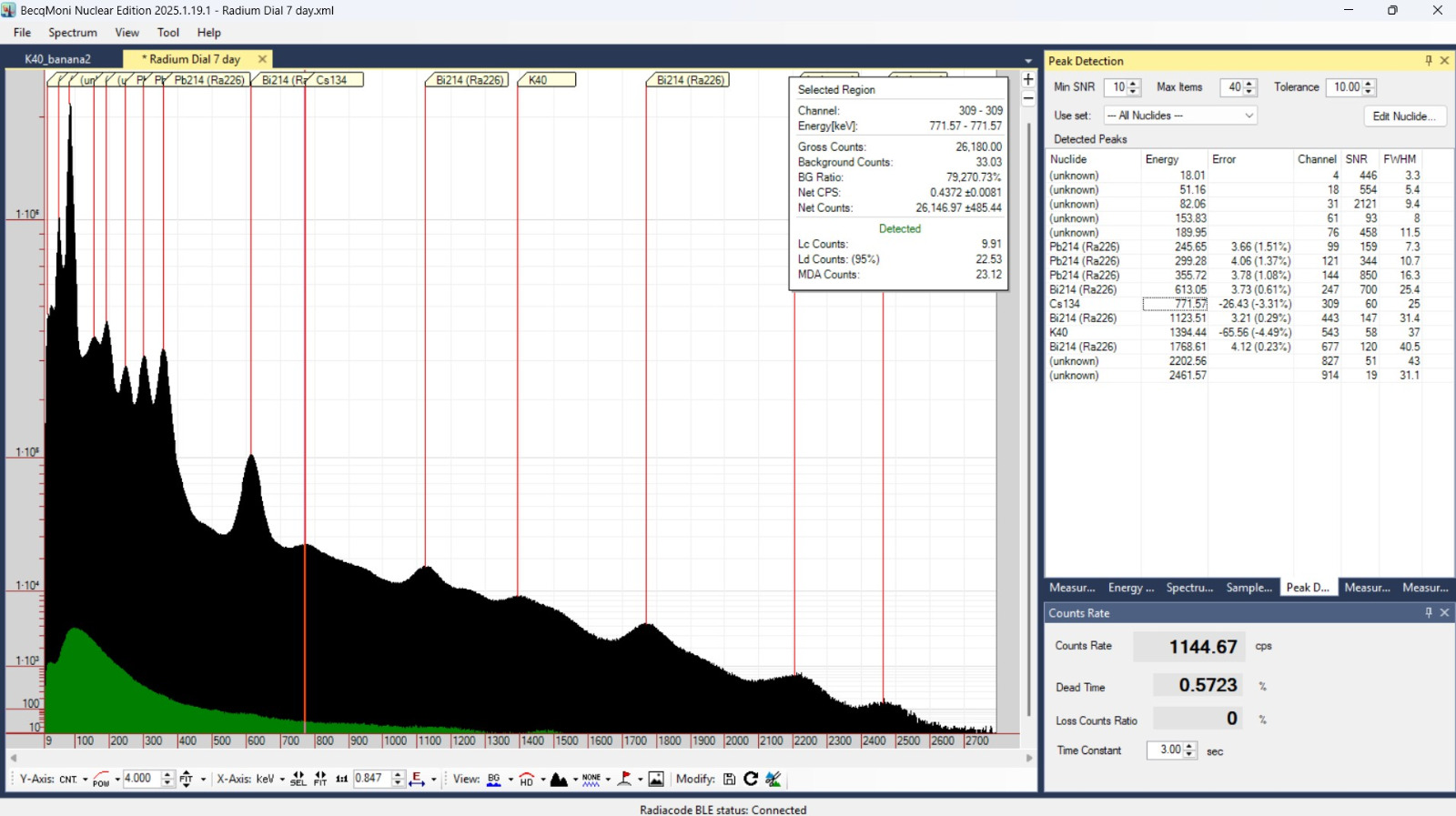

Radium gamma spectrum was created by ChrisLX200
Attachments:
Please Log in or Create an account to join the conversation.
10 hours 43 minutes ago #7347
by Simomax
Replied by Simomax on topic Radium gamma spectrum
That's a nice, well defined spectrum. Good work. The mis-identified energy should be Bi-214 at 768 KeV as far as I know. It's probably showing at 771 because its a low count to background so not well defined, and also the calibration may be off by a couple of KeV - mine is.
(I have moved this post to the 'Gamma Spectroscopy' category.)
(I have moved this post to the 'Gamma Spectroscopy' category.)
Please Log in or Create an account to join the conversation.
- ChrisLX200
-
Topic Author
- Offline
- Premium Member
-
Less
More
- Posts: 142
- Thank you received: 8
10 hours 17 minutes ago #7348
by ChrisLX200
Replied by ChrisLX200 on topic Radium gamma spectrum
Odd, I thought I had posted in the gamma spectroscopy section. Oh well...

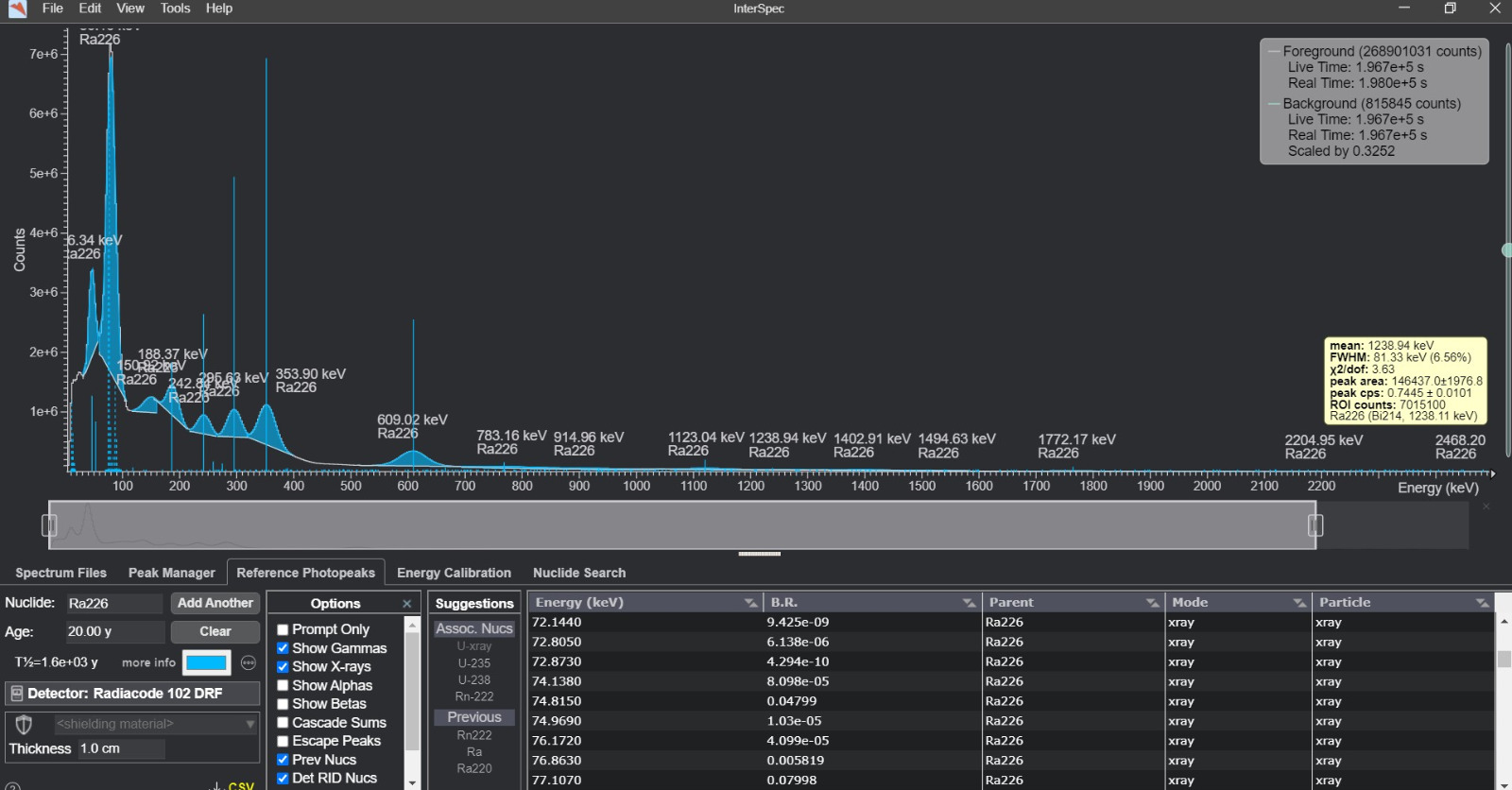

Yes, that peak is quite broad which is not helping, when the capture is complete perhaps it will be better defined (this is just 24hr). I'll open the data in InterSpec and see if that does a better job of isotope ID. The K40 is also probably something else - you can tell by the error being large. Such a large bandwidth of peaks I doubt I can get the 103 better calibrated across such a range, it won't do multi-peak fitting only a 3 peak registration. There is no smoothing of that data!
Yes, that peak is quite broad which is not helping, when the capture is complete perhaps it will be better defined (this is just 24hr). I'll open the data in InterSpec and see if that does a better job of isotope ID. The K40 is also probably something else - you can tell by the error being large. Such a large bandwidth of peaks I doubt I can get the 103 better calibrated across such a range, it won't do multi-peak fitting only a 3 peak registration. There is no smoothing of that data!
Please Log in or Create an account to join the conversation.
